Move ahead with the power to do more

70 HP

52kW @ 4000 RPM

Direct Injection Common Rail Diesel Engine with TCIC

Engine

GBS 65-5/5.07

Gearbox

38%

Max Gradeability

Features

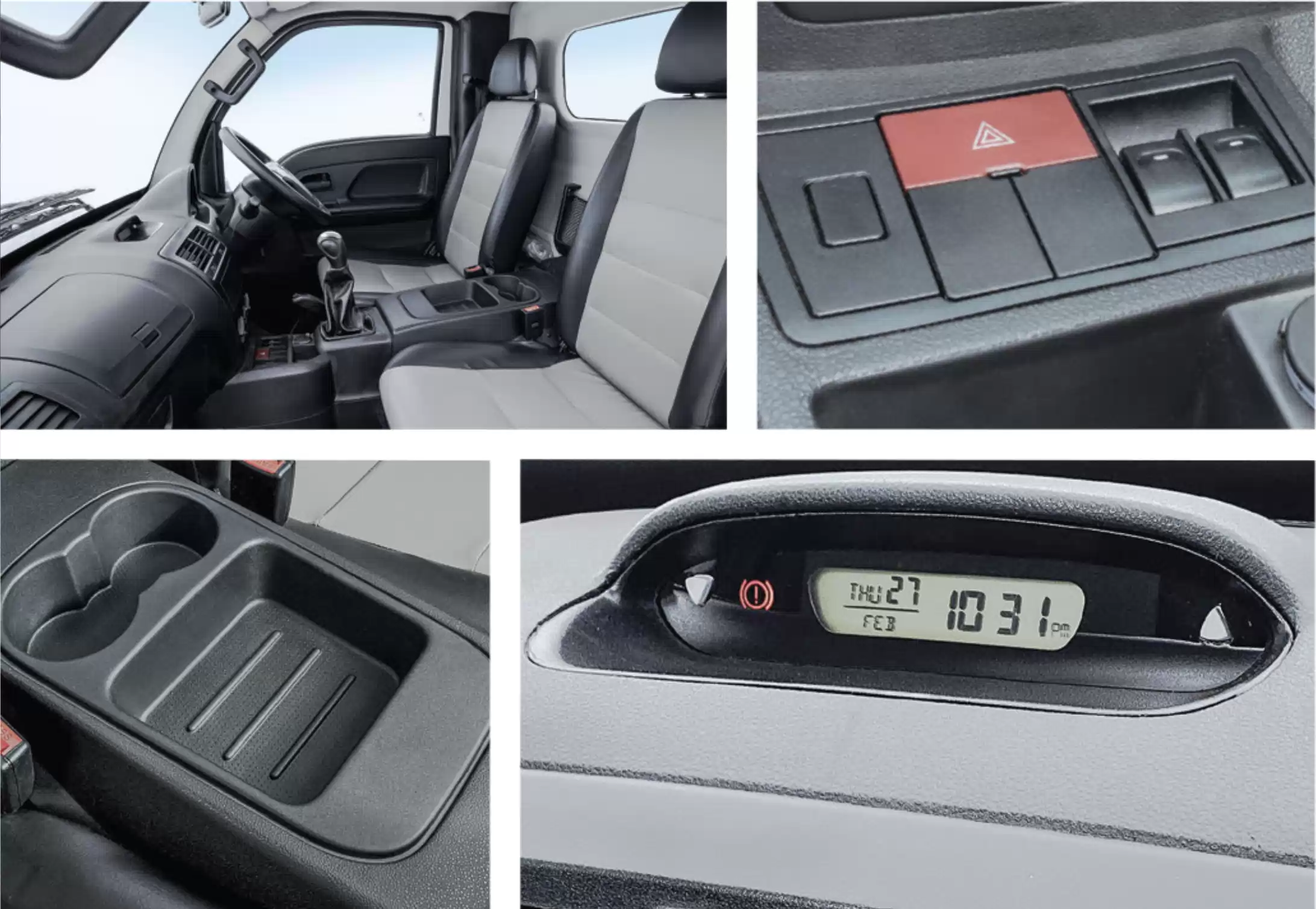

Ergonomically-designed 3-way adjustable seats for better comfort
Power steering for reduced driving effort, tilt & telescopic to suit individual adjustments
Easy-to-operate power windows
AC to ensure cool, comfortable drive during hot & humid conditions

Semi-monocoque structure with all-steel cabin ensures meeting of stringent frontal crash norms
Brake booster & LSPV for improved braking efficiency
Collapsible steering column to minimise injuries in case of accidents
14″ tyres for better road grip & stability at high-speed operations

Engine	Direct Injection Common Rail Diesel Engine with TCIC
Max Power	52kW (70HP) @ 4000 RPM
Max Torque	140 Nm @ 1400-2750 RPM
Clutch	Single Plate Dry Friction Diaphragm Type
Gearbox	GBS 65-5/5.07
Emission	BS III
Torque	590 Nm at 1500 rpm
Gradeability	32%
Gear Box	TATA G600
Type	5-speed Manual Transmission
Steering	Hydraulically-assisted Power Steering
Brakes	Front: Disc Brakes Rear: Drum Brakes
Suspension	Front: Independent Strut type with Anti-Roll Bar Rear: Semi-elliptical Leaf Spring
Shock Absorber	Hydraulic Double Acting telescopic type
Fuel Tank	38 Litres
Max Speed	125 kmpl
Max Gradeability	38%
Wheel Base	2380 mm
Vehicle dimensions (1bh)	4340 mm x 1565 mm x 1864 mm
Cargo Box Dimensions(1bh)	2630 mm x 1460 mm x 300 mm
GVW	2260 kg
Kerb Weight	1260 kg
